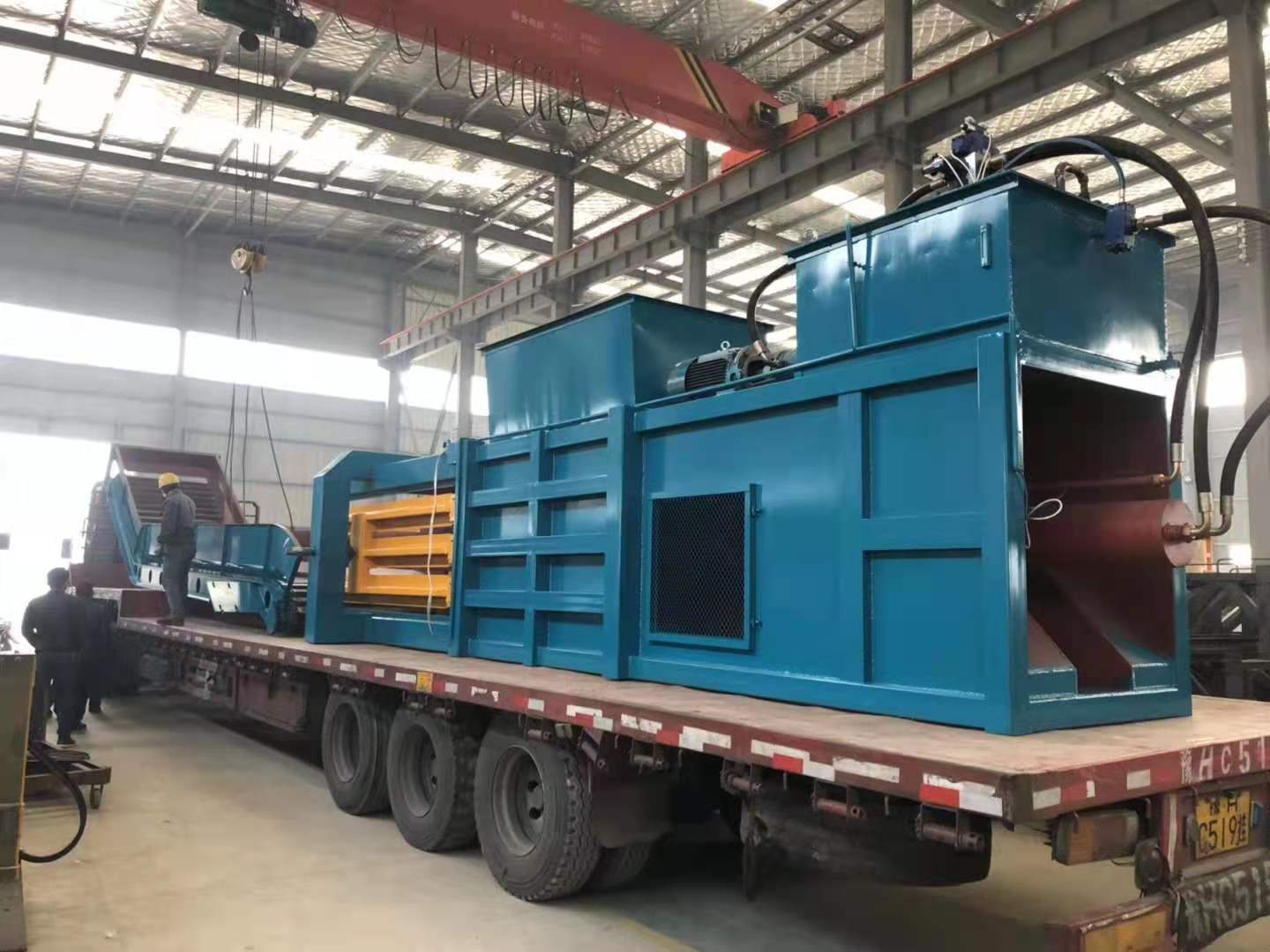

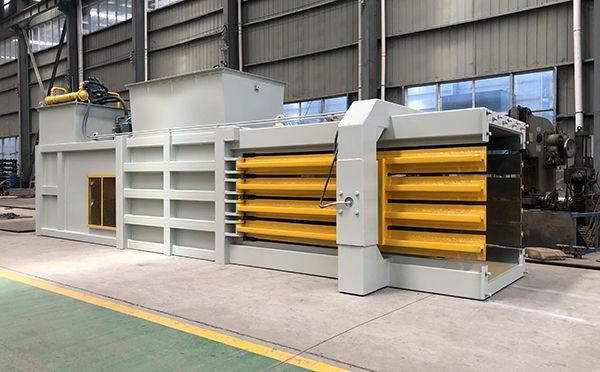

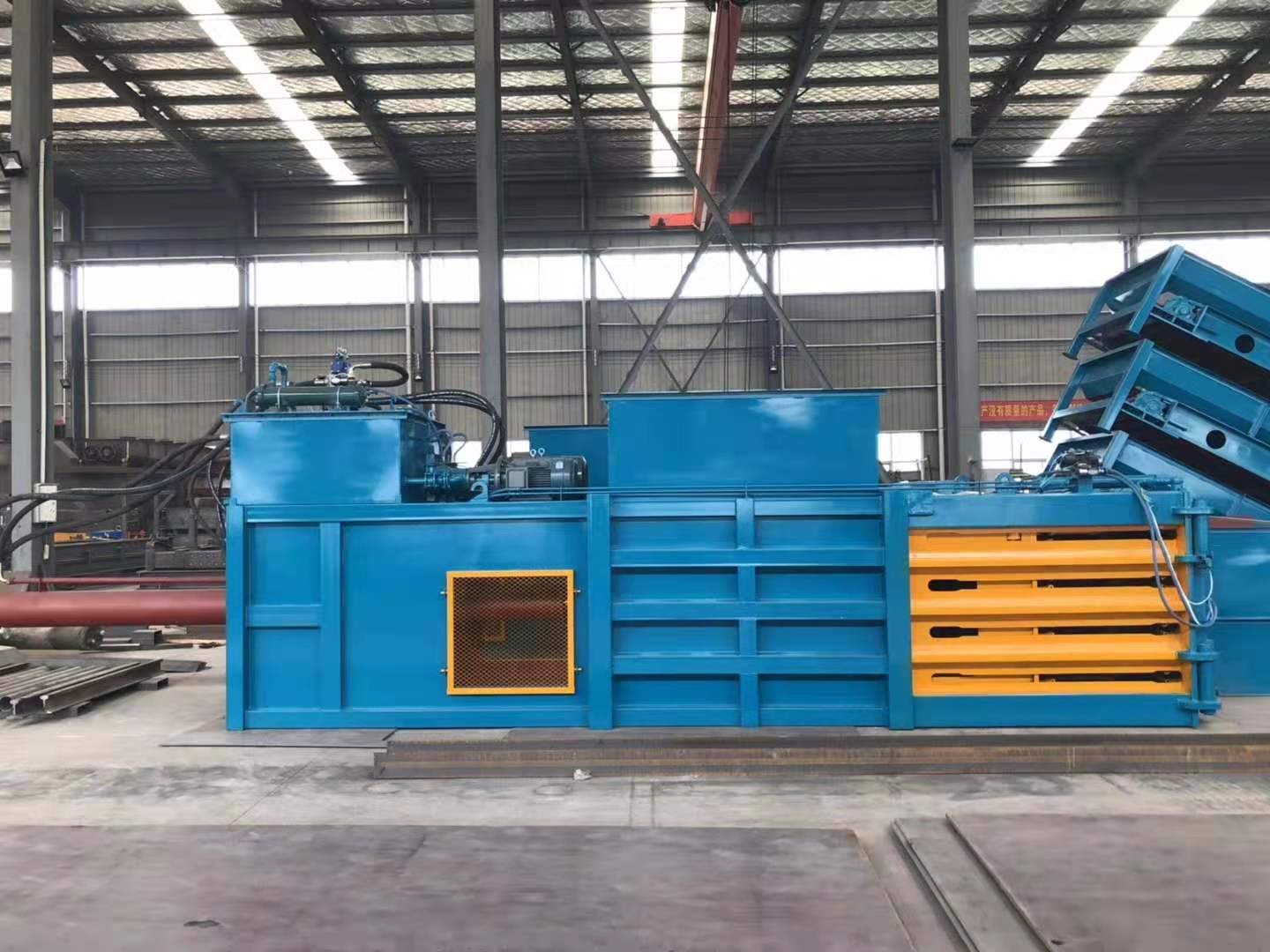

Scrap iron baler

1. All models are hydraulically driven, and manual or PLC automatic control operation modes can be selected.

2. No foot screws are required for installation, and diesel engines can be used as power in places where there is no power supply.

3. The package delivery is side push/manual.

4. There are six grades of extrusion force from 100 tons to 315 tons, and the production efficiency ranges from 0.5 tons/hour to 20 tons/hour.

5. The size of the feeding box of the hydraulic metal baler and the shape and size of the bale can be customized according to the user's raw material specifications.

Add loose materials to the large hopper above the feeding tank. Oil is in the rear cavity of the feeding cylinder, the piston rod is extended, and reset, and then the oil is in the back cavity of the sub-cylinder, driving the piston rod and punch of the main cylinder to press down quickly, when the punch enters the mold cavity, the back cavity of the main cylinder enters the pressure oil , The main cylinder begins to attack to compress the material into a crumb cake, and after maintaining the pressure, the main cylinder retreats slightly, the back cavity of the auxiliary cylinder enters oil, the piston rod retreats, drives the pumping block back to the position where the cake block can exit, and the main cylinder continues to descend , After pressing the pressed cake out of the mold cavity, the front cavity of the auxiliary cylinder enters the oil, the piston rod extends, and the pumping block is driven to push the cake out of the cake and reset at the same time. Finally, the front cavity of the sub-cylinder is filled with oil, which drives the piston rod and punch of the main cylinder to rise and reset to complete a cake pressing cycle process and enter the next cycle program.
