Horizontal baler Introduction

Waste paper baler is a mechatronic product, mainly composed of mechanical system, control system, feeding system and power system. The whole packing process consists of auxiliary time such as pressing, returning, carrying, transferring, outgoing up, outgoing down, and receiving. As of 2013, waste paper balers on the market are mainly divided into horizontal and vertical waste paper balers. The vertical waste paper baler has a relatively small volume because the packaging size is relatively small and the efficiency is not high. The horizontal waste paper baler is bulky compared to the vertical baler, but its compression force is also larger than that of the vertical baler, the size of the baler is relatively large, the efficiency of the bale is high, and it is easy to operate automatically because The general waste paper baler adopts a horizontal form. Horizontal waste paper baler is easy to realize automation, can improve the overall efficiency of packing, and save the labor cost of packing.

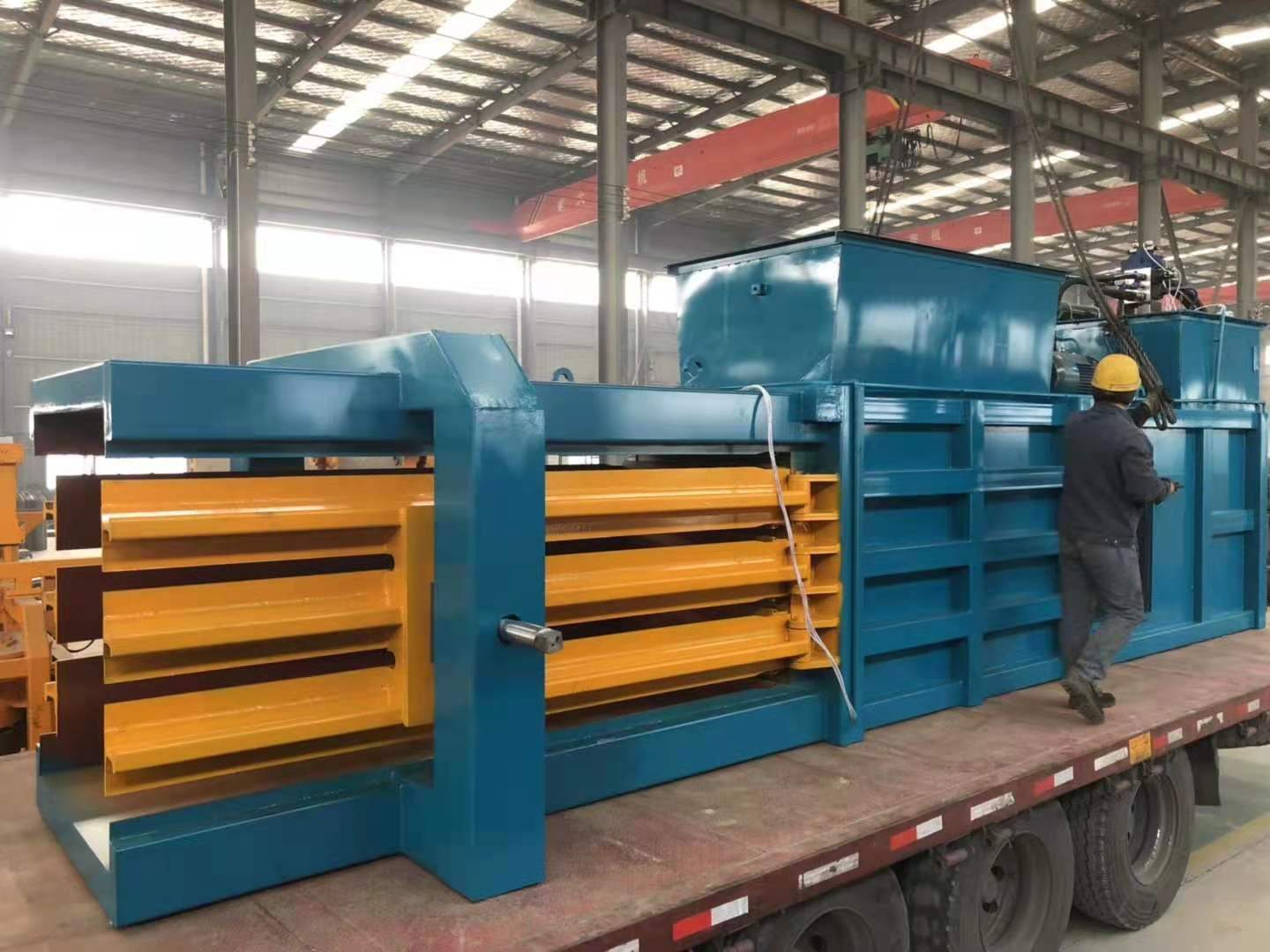

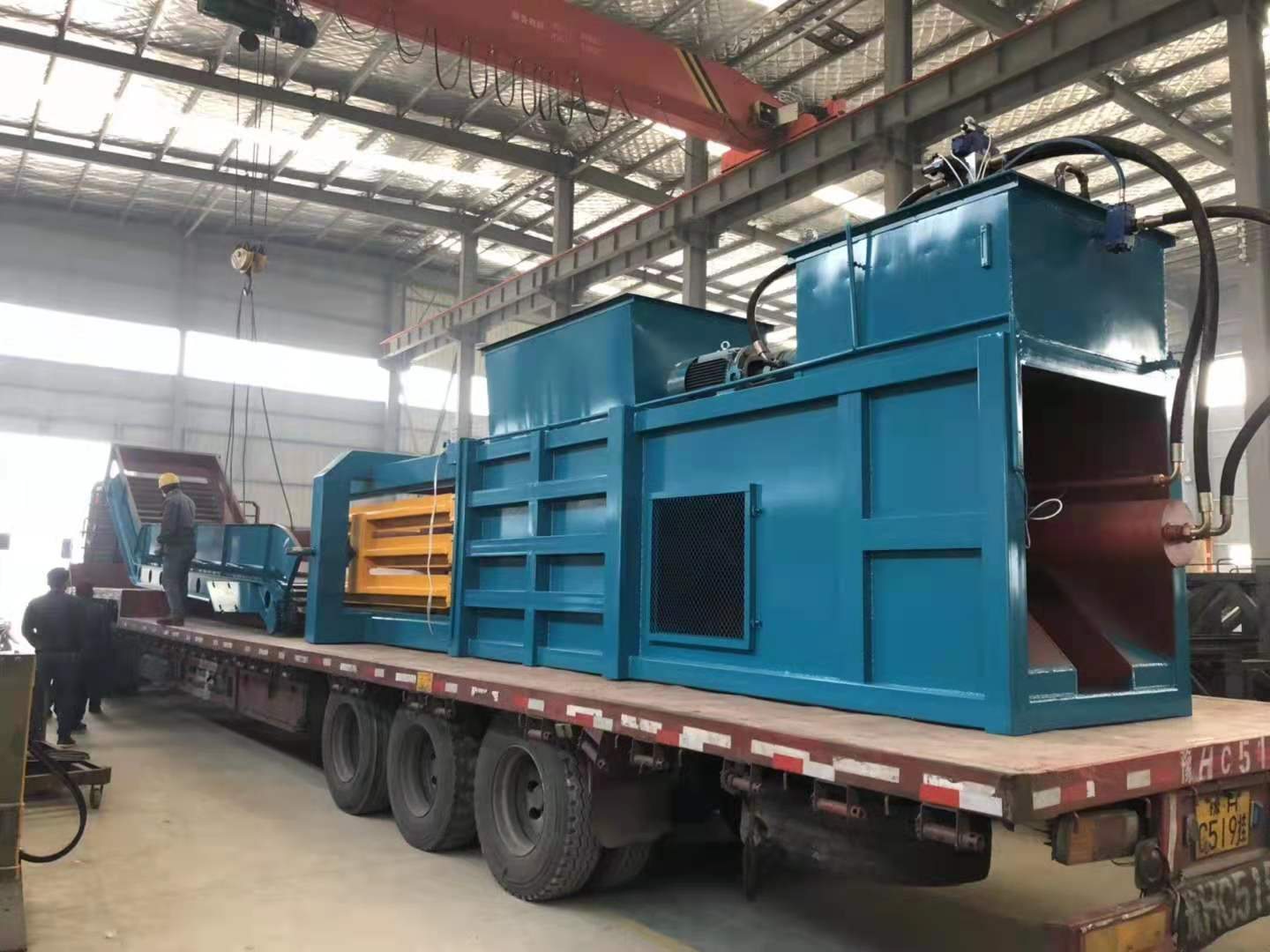

Album

Advantages

1. Customized horizontal waste paper baler size can be customized according to customer needs, the most popular horizontal hydraulic waste paper baler size is 1.1 meters wide, 1.3 meters high and 1.1 meters wide, 0.9 meters high.

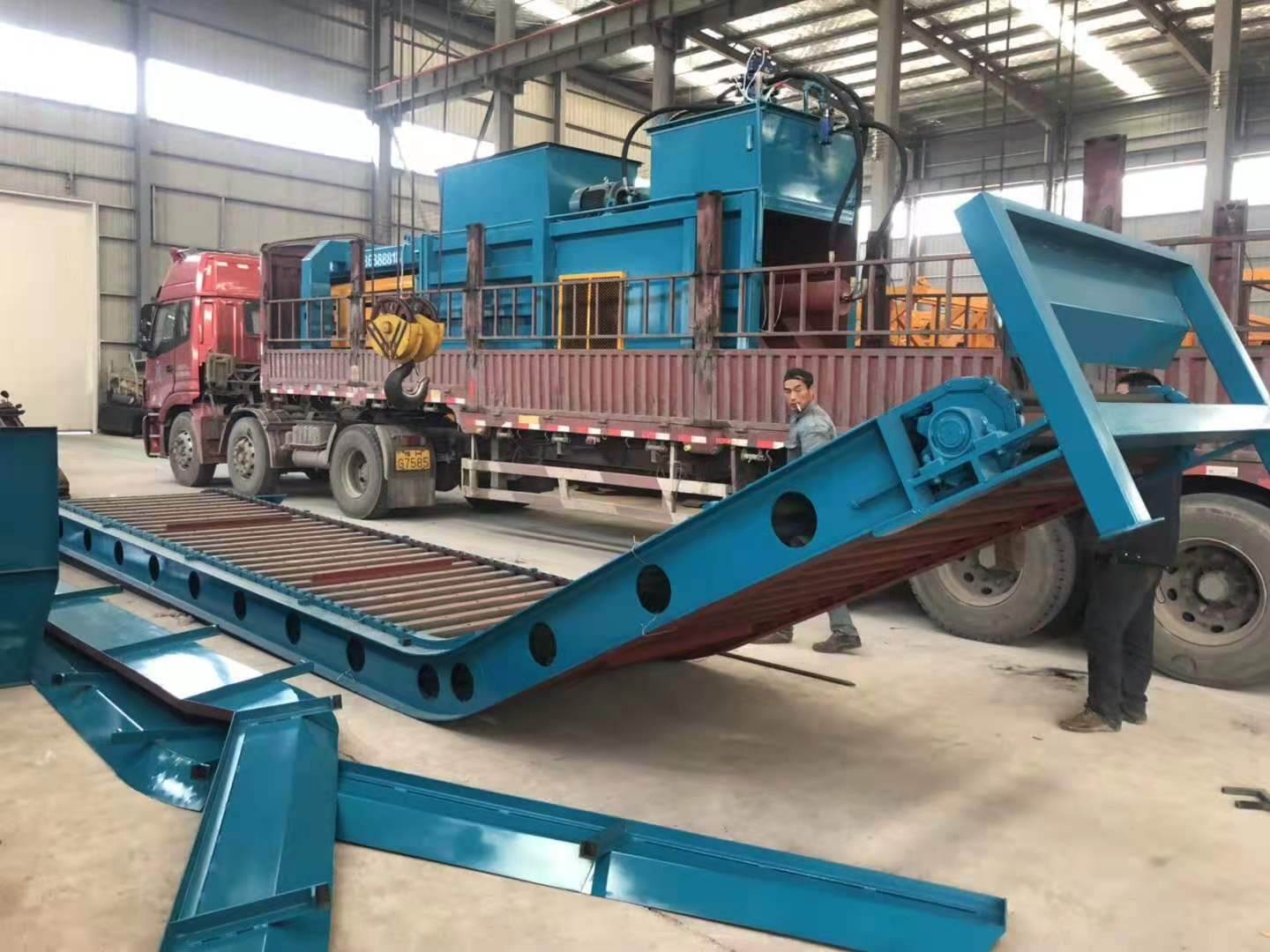

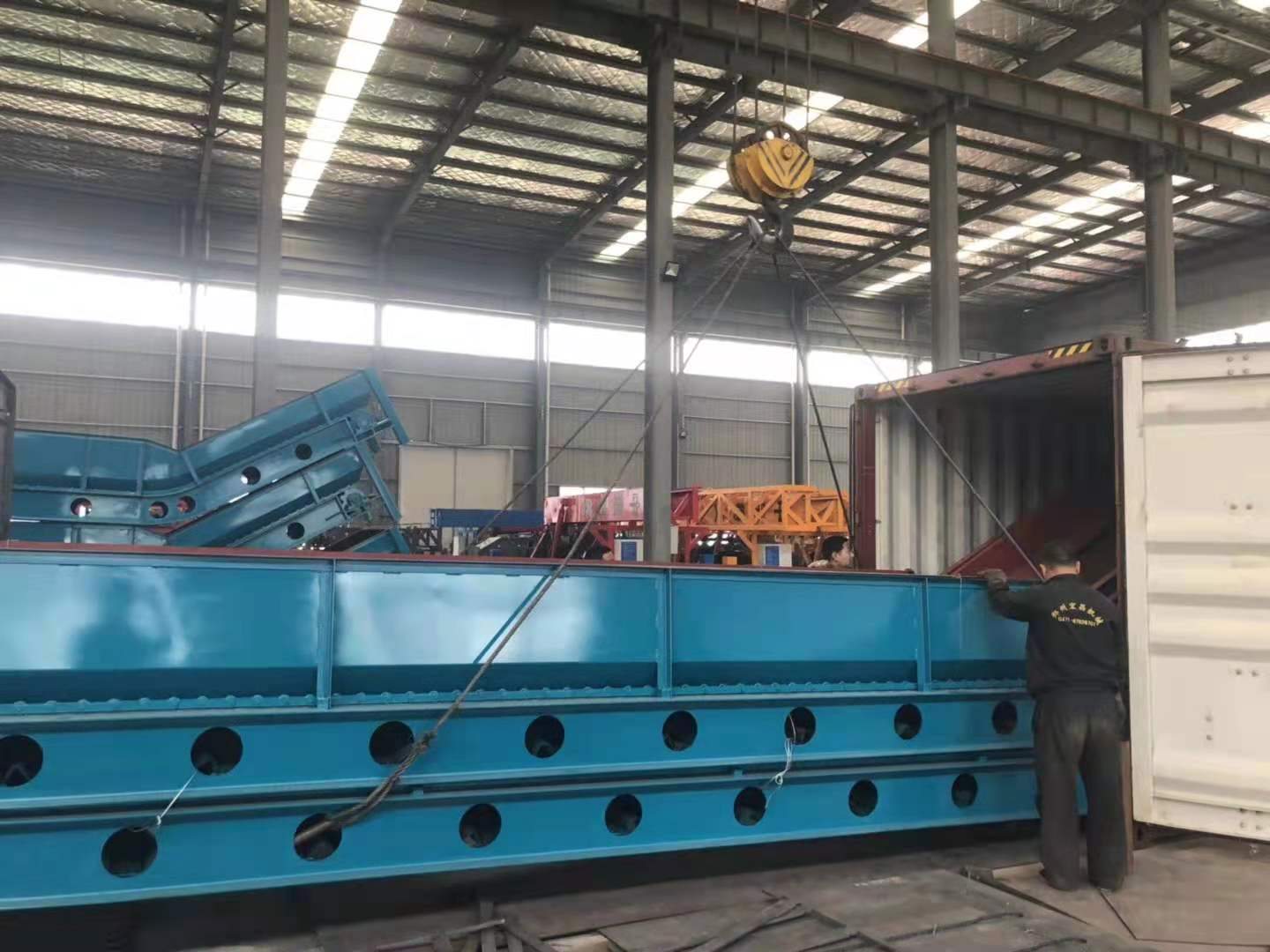

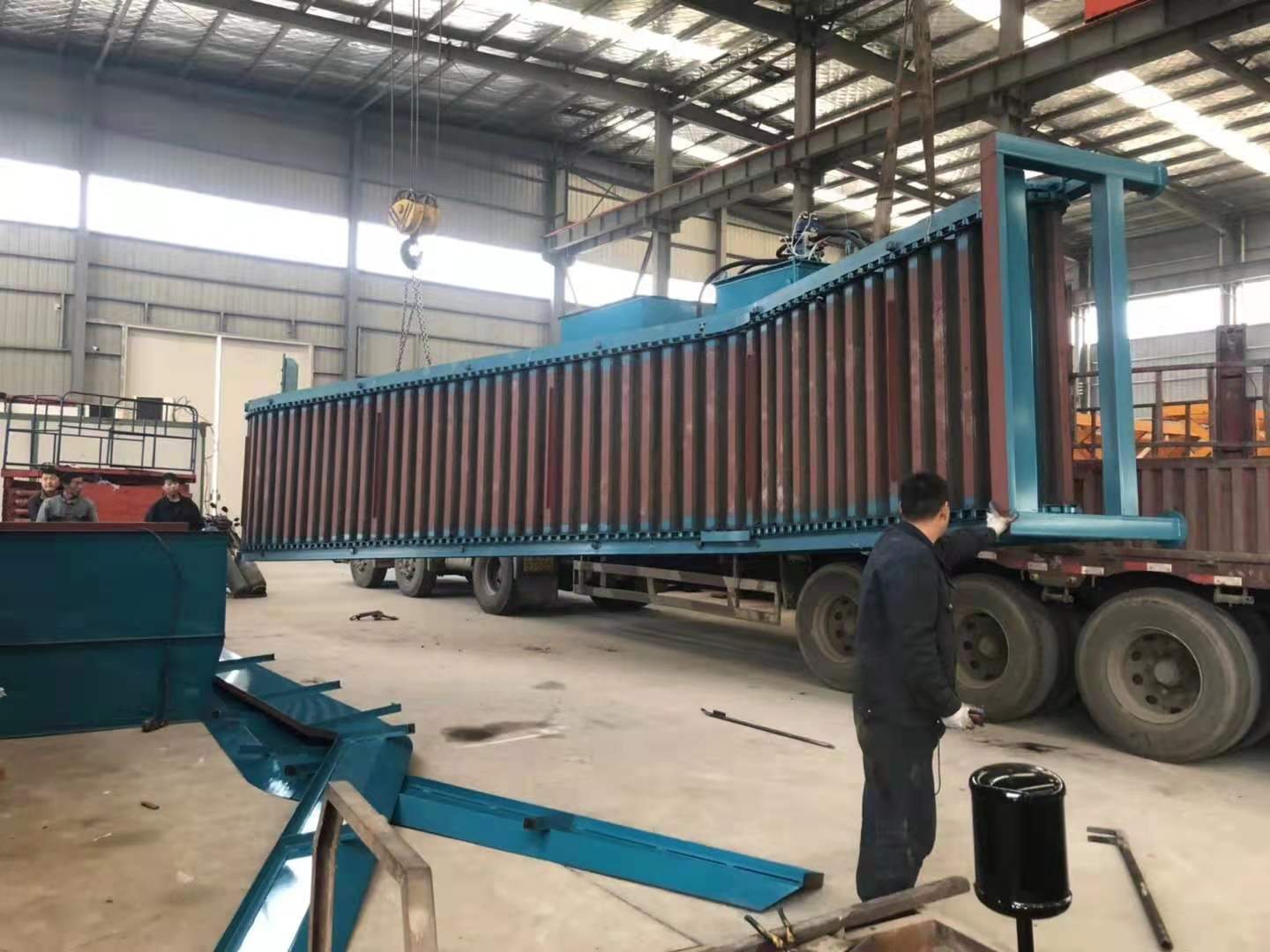

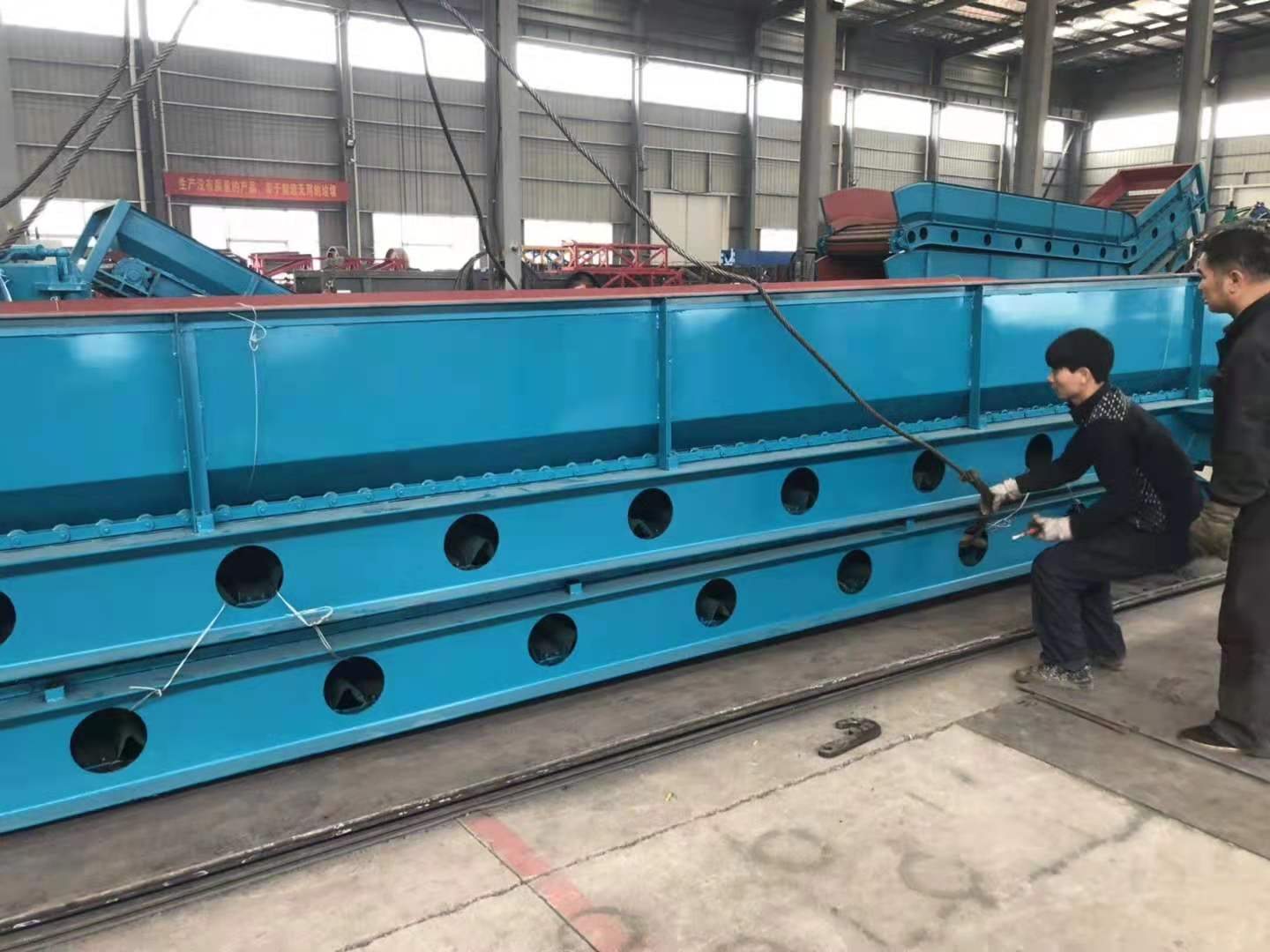

2. The chain conveyor belt of the waste paper baler can be customized, the width of the conveyor belt can be widened, and the length can be customized according to customer needs or site restrictions. The conventional transmission has a bandwidth of 1.6 meters and a length of 11 meters.

3. The feed bin of the waste paper baler can be customized. The bin of the waste paper baler is used in conjunction with the feeding conveyor. The conveyor belt of the customized waste paper baler needs to be equipped with a customized feed bin.

4. The length of the arm of the straight-out waste paper baler can be lengthened and customized, which is convenient for customers to compress larger length waste paper bales.

Working Principle

The waste paper baler is used to squeeze waste paper and similar products under normal conditions, and pack them with special packaging tapes to greatly reduce the volume, so as to reduce the transportation volume, save the freight, and increase the benefits for the enterprise. Introduced advanced technology and advanced technology of similar products at home and abroad.

Parameter

Product number	Type 80	Type 120	Type 160	Type 180
Bale size	1300x800x900	1500x900x1100	1500x1100x1200	1500x1100x1300
pressure	100-130 tons	150-180 tons	200-230 tons	280-300 tons
Bag weight	500-700 kg	700-900 kg	900-1200 kg	1300-1500 kg
Yield	6 packs/h	6 packs/h	6 packs/h	6 packs/h
Strapping	3-4 ropes	3-5 ropes	3-5 ropes	3-5 ropes
power	18.5kw	22+11kw	30+15kw	30+18.5kw
Operation method	Manual or fully automatic	Manual or fully automatic	Manual or fully automatic	Manual or fully automatic
Total Weight	6.3 tons	7.8 tons	9.8 tons	11.5 tons
