Working principle of rod making machine

Rod making machine:

Main equipment used for making rod-shaped solid fuels

The bar making machine can be divided into 50 bar machines and 70 bar machines based on the size of the forming cylinder. The rod making machine is the main equipment that uses carbon containing wooden materials such as wood, rice husk, peanut husk, and plant straw (without any additives) to produce rod-shaped solid fuel under high pressure and high temperature conditions.

This machine adopts an automatic constant temperature device, which works stably at the set temperature and has the advantages of reasonable structure and simple operation and maintenance. The solid bar material produced by this machine is easy to ignite after carbonization, has a high calorific value (which is more than 20% higher than ordinary wood), less pollutants, and is convenient for storage and transportation. It can fully utilize crop residues, achieve waste to treasure, and alleviate the contradiction between agriculture, forestry, and energy shortage in China.

Product Introduction:

Rod making machine, also known as wood powder forming machine, can be divided into wood chip rod making machine, rice husk rod making machine, sawdust rod making machine, etc. This equipment is the main forming equipment for producing machine made charcoal. It can compress granular waste materials such as bamboo, wood, fruit shells, and straw (excluding rice straw and wheat straw) with a moisture content of less than 12% (length ≤ 5mm, diameter ≤ 3mm) into solid fuel rods with central holes through high-temperature and high-pressure processes without any binder.

Principle:

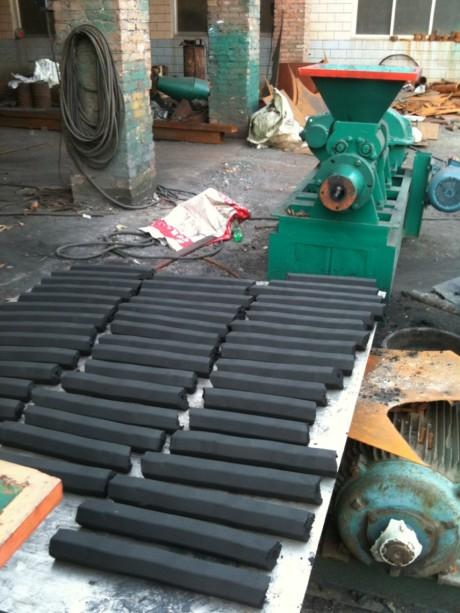

The rod making machine uses sawdust, crop straw (corn straw, soybean straw, sorghum straw, cotton straw, rapeseed straw, peanut seedlings, sunflower straw), rice husks, grass, shrub branches, bamboo and wood cuttings, feed heads, sugarcane bagasse, etc. as raw materials. After being crushed by a sawdust crusher, the loose raw materials are processed into hollow rods in a high-temperature and high-pressure zone under the action of a spiral thruster and a heating ring. This product has high density, small size, and good flammability, and can replace firewood and coal. Generally, the outer diameter of the product is 50-60mm, and the aperture is 15-20mm, in the form of hollow quadrangle or Hexagonal prism. It can also be made into spherical, granular and Yeontan shapes.

Purpose and characteristics:

1、 This product has reasonable design, reliable manufacturing quality, simple structure, convenient operation, small size, small footprint, labor and electricity saving characteristics.

2、 The fully automatic control electric heating device designed can randomly adjust the dry and humidity of materials, ensuring stable discharge molding and improving work efficiency.

3、 The main parts of this product are made of wear-resistant materials with special treatment, so it can be continuously pressed for production and is durable.

4、 Suitable for pressing and shaping various biomass raw materials, with low energy consumption and high production efficiency. 5、 Changing the three bearings of the old machine center to four has increased the stability and durability of the machine.

6、 Change the old type of oil coated lubrication to oil immersed lubrication, as long as there is no shortage of oil, it can be used for many years.

7、 Increasing the pitch of the screw increases the feed rate, thereby significantly increasing production.

8、 The structure of the forming cylinder has been improved, reducing the friction between machinery and raw materials, and increasing the density of the core rod.
