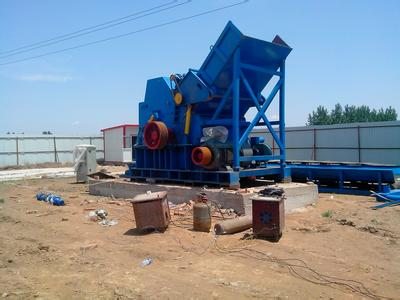

Can crusher

1. The crushing chamber of the can crusher has the advantages of large torque, high output, no noise, and wear resistance.

2. It has continuous feeding for scrap metal cans, and it can also be fed intermittently.

3. It can effectively remove the attachments of waste cans by crushing.

4. The equipment has the effect of dust removal and environmental protection.

5. The machine drive is equipped with safe electrical maintenance, which can avoid equipment damage caused by malfunction.

6. It can be continuously or intermittently fed, and the discharging is uniform to save space.

The can crusher uses a high-speed rotating rotor to agitate and break long metal shavings. The high-speed rotating (approximately 1000 rpm) main shaft is connected in series with multiple tool holders, and the circular plate is connected to the main shaft to rotate. There are fixed knives made of special steel around the circular plate and fixed on the cutter head. In addition, there are four sets of flail knives, which rotate freely on their own small shafts. When the can crusher works in the workshop, the waste cans and metal scraps enter the machine from the inlet, and are first torn into large pieces by the high-speed rotating fixed knife and brought into the first-stage crusher. The scalpel mounted on the rotor disc After repeated beating, kneading, and grinding, the paint on the large piece of metal was separated from the paper, rust and other magazines. At the same time, the material entered the secondary crushing cavity. As the gap was gradually reduced, the scrap metal was crushed into very dense The size of the metal agglomerates flowing out of the sieve at the bottom of the sieve can be selected according to the size of the broken particles required by the metal shavings.
