800 ton gantry shear-Henan Bohan Environmental Protection Technology Co., Ltd.

800 ton gantry shear Introduction

800T gantry shear is a kind of equipment suitable for cutting heavy steel scrap, used for light and thin steel, steel bar, steel plate, nickel plate, steel plate, round steel, steel pipe, scrap copper, scrap steel, scrap iron, light metal structural parts, stainless steel , Metal briquettes, car bodies, aluminum alloys, copper materials, iron filings, steel wires, metal briquettes and other scrap metals are cold-cut short and processed into qualified charge. The gantry shearing machine has a wide range of applications. It can be used as processing equipment for metal recycling and processing units, but also as a metal cutting processing equipment for furnace material processing in factory foundries and mechanical construction industries.

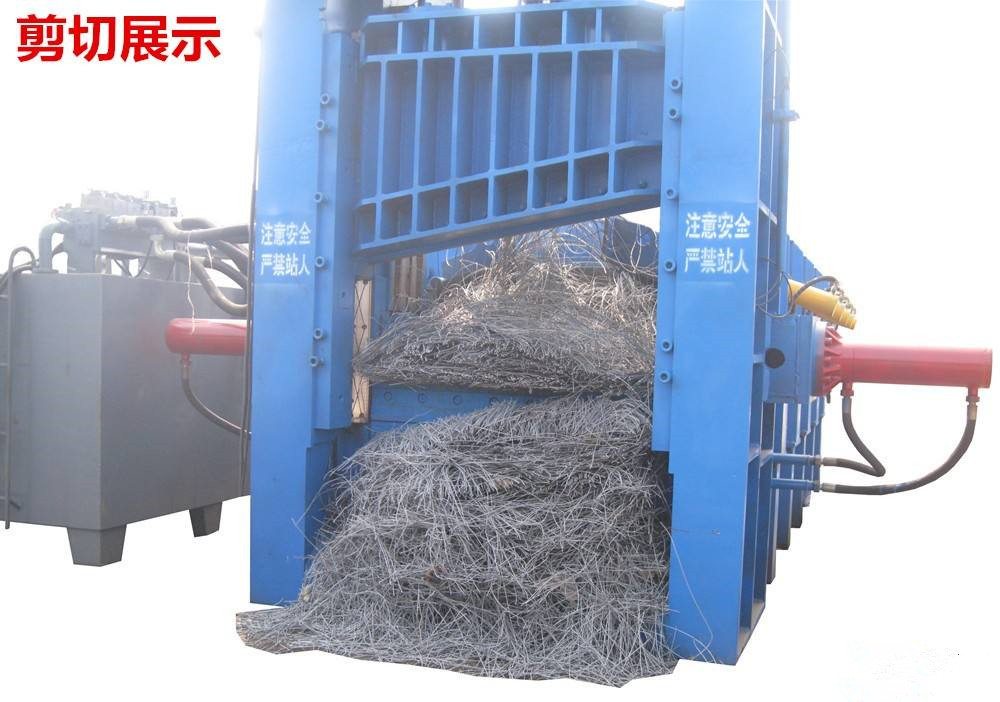

Album

Advantages

800T gantry shears are also known as gantry shears. This type of gantry shears is suitable for scrapping various scrap plates, bars, ferroalloy charge, special plates, ship plates from shipbreakers, automobiles, metal briquettes, iron filings, etc. Perform one-time shearing and crushing to replace manual dismantling in order to reduce production costs and achieve convenient results. The 200-1800 ton gantry shear produced by our company adopts electro-hydraulic control system, which has the advantages of high automation level, safe and stable work, and outstanding compressive effect. In the application of gantry shearing machine, our company's products are available for users to choose from the packaged gantry shearing machine and the independent gantry type.

Working Principle

800T gantry shears are composed of frame, hydraulic cylinder, hydraulic power system and electrical system. Based on the working principle, it passes through the automatic feeding box, that is, after the material is grabbed to the feeding box
, the waste is automatically sent to the feeding box. At the cutting edge of the knife, the feeding speed can be adjusted by the speed regulating motor. Side squeeze cylinders are installed on both sides of the material box. If large waste materials such as scrapped cars cannot be cut through the gantry shear, the side squeeze cylinders can be used to squeeze and reduce the waste, and then be sent to the cutting blade through the conveyor to be cut off.

Parameter

Specification model	Shear force	System pressure	Material box size	Blade length	Class output	Number of cuts	Motor Power
GKL-400T	400	31.5	50001300500	1400	32-40	4-6	45
GKL-600T	600	31.5	55001500700	1600	64-80	4-7	2*45
GKL-800T	800	31.5	60001700800	1800	120-160	4-8	3*45
GKL-1000T	1000	31.5	600019001000	2000	160-200	4-9	5*45
GKL-1250T	1250	31.5	800020001400	2200	200-240	4-10	6*45
