Small crocodile scissors

1 It is hydraulically driven, and the electrical appliances are equipped with protection devices, which have reliable safety performance and easy operation;

2Different shearing force and blade length are available for selection, and non-standard shearing machines can be customized for customers;

3 The main component oil seal adopts oil seal, which greatly improves the sealing performance of the machine;

4 Take the lead in adopting pressure compensation variable pump, which effectively improves the shearing force of the machine;

5 The installation does not require foot screws, and can be equipped with diesel engine as power;

6 Optional fast hydraulic system or foot switch, the efficiency is significantly higher than the machine in the same industry.

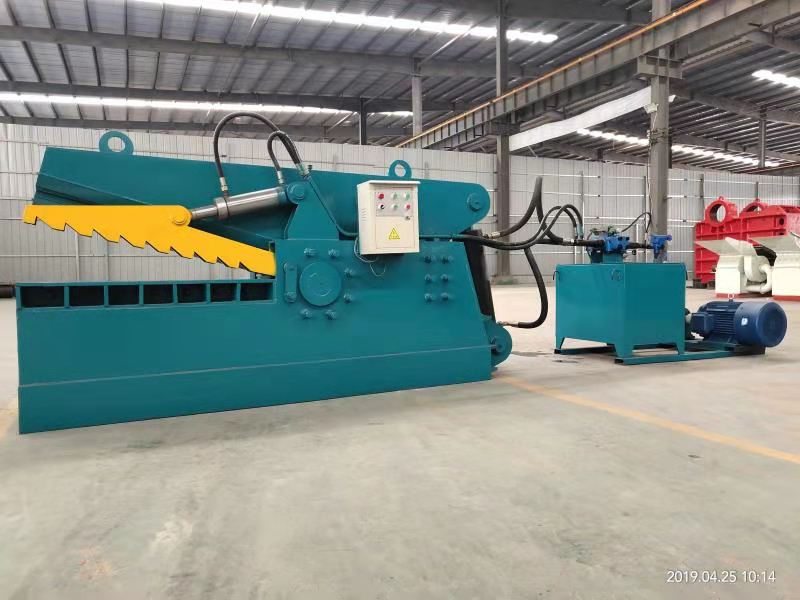

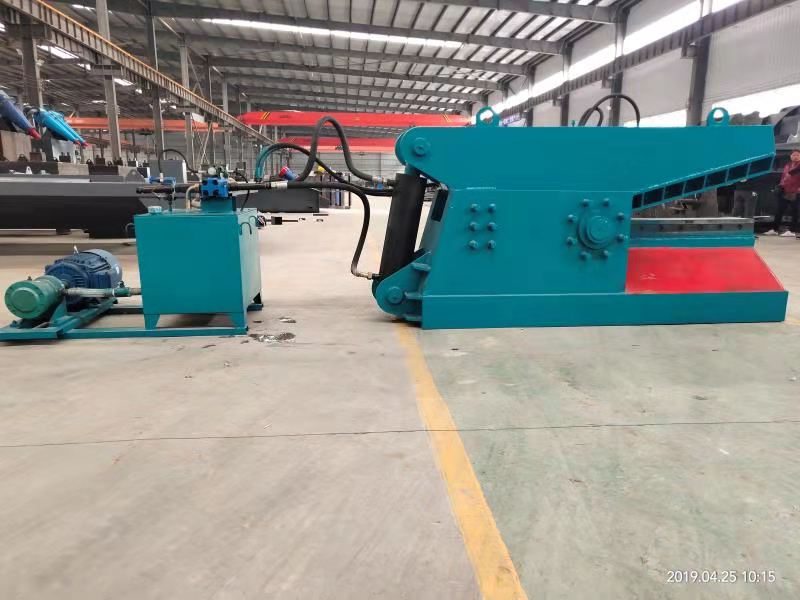

The small crocodile shear is composed of a shearing cylinder, a shearing knife, a sliding block pressing knife, a lower knife seat, a pressing cylinder, etc. When the shearing work is running, the hydraulic pump station (power output source) supplies oil to the pressing cylinder to make it slippery. The block pressing knife is pushed to the lower knife seat to complete the fixed compression of the material, and then the hydraulic pump station supplies oil to the shearing cylinder to make the shearing knife go down to complete the cutting step. After the shearing is completed, the hydraulic pump station completes the return movement driven by the hydraulic oil backflow of the shearing cylinder and the pressing cylinder successively.
