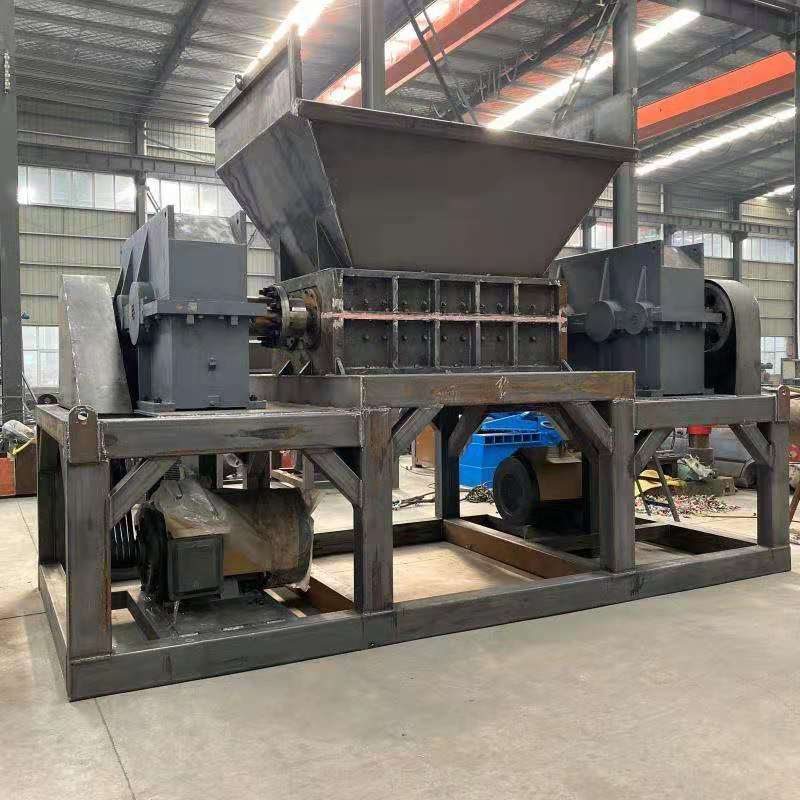

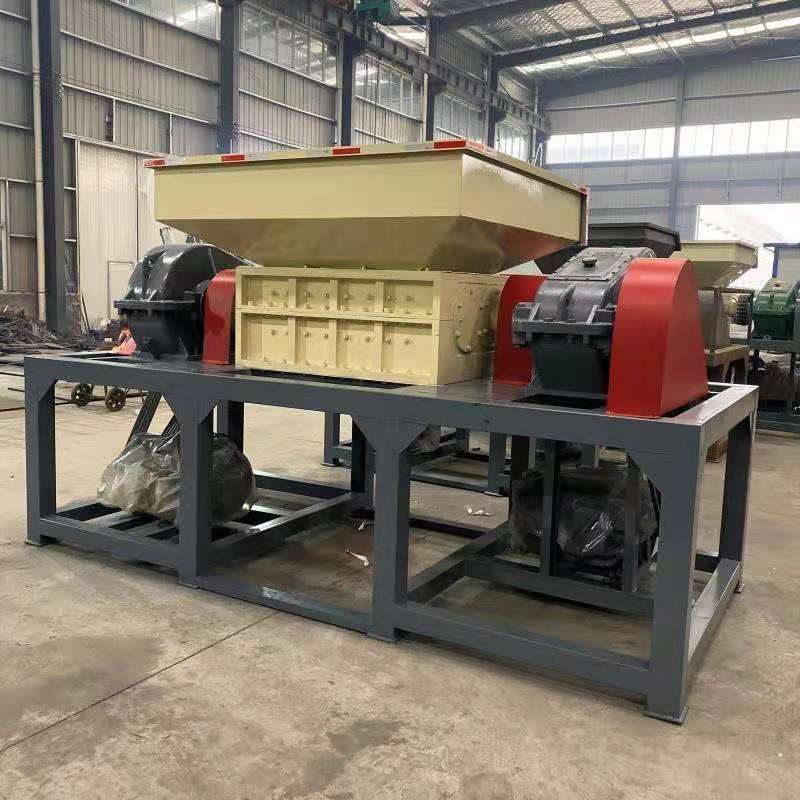

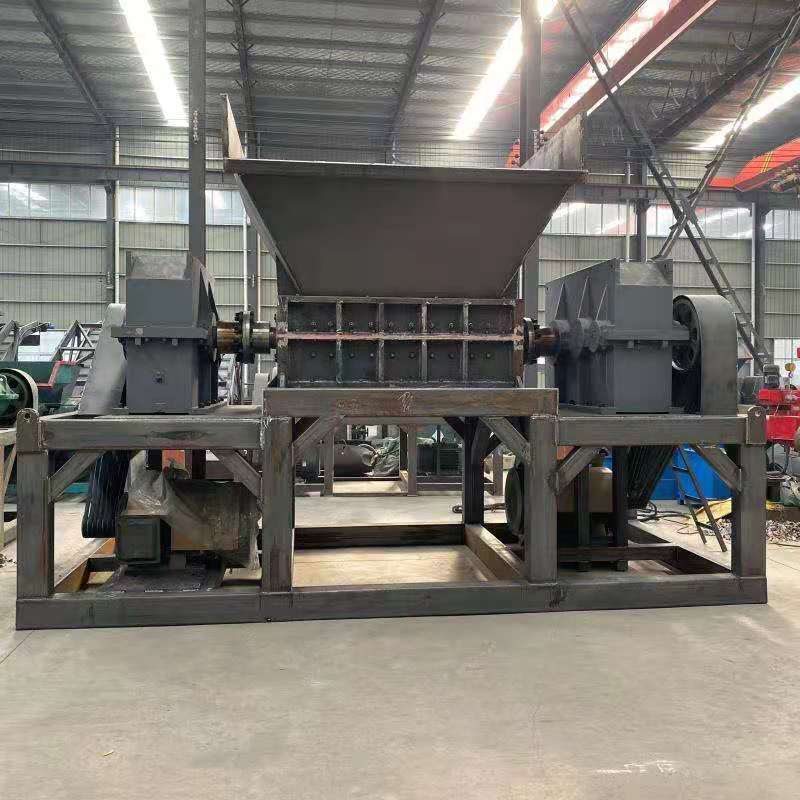

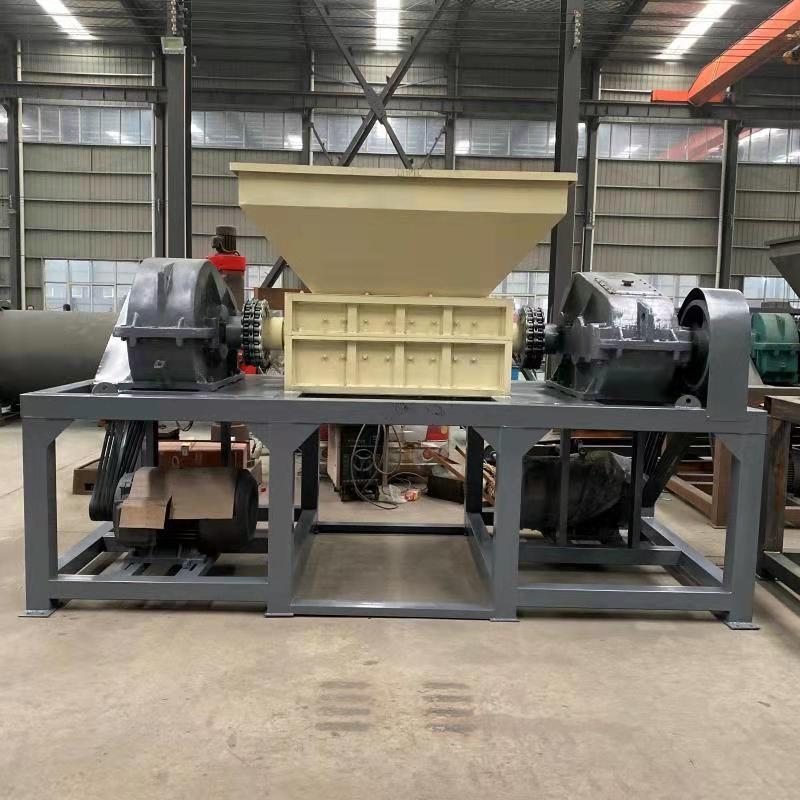

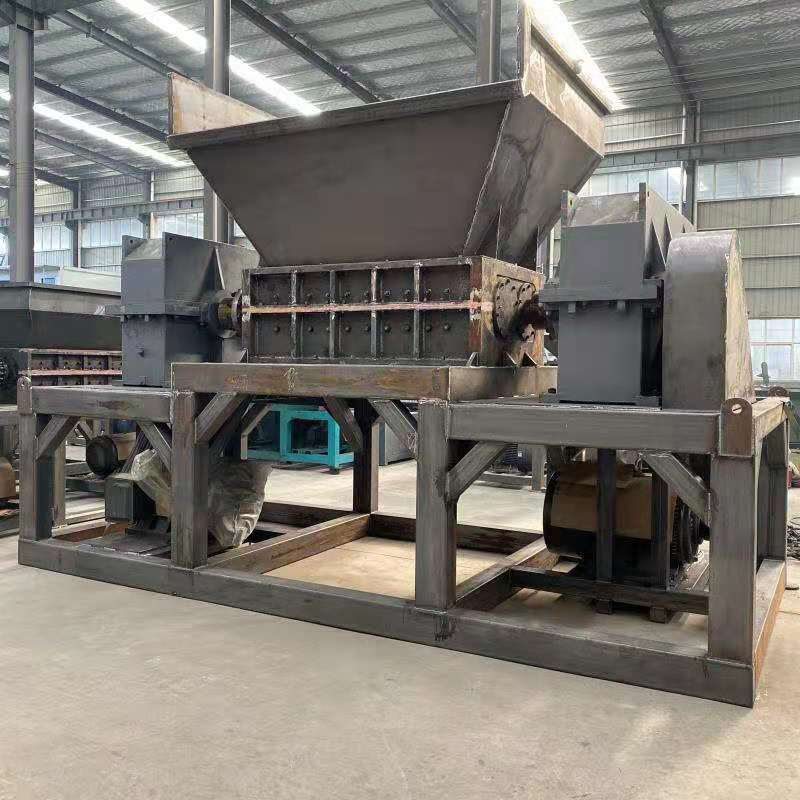

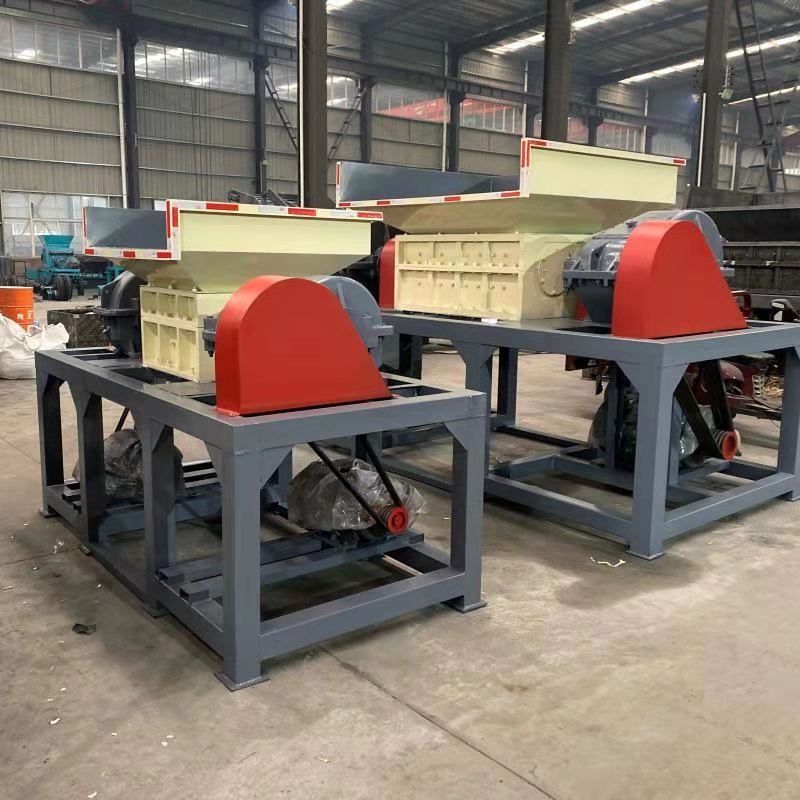

Double shaft shredder

1. The main body of the crusher adopts high-quality steel plate welding to eliminate stress treatment/ overall machining to ensure the stability of the equipment under heavy load for a long time.

2. The movable knife/fixed knife movable knife material is made of special special alloy tool steel forging blank, precision machining, multiple heat treatment and low temperature freezing heat treatment technology. The overall toughness and hardness are consistent and can be used repeatedly to ensure the cutting performance and use life. The fixed knife adopts the hook type installation to optimize the tool replacement function and make the maintenance and replacement of the tool more efficient.

3. The split and easy-to-disassemble type of bearing/sealed bearing seat can quickly remove moving knife, fixed knife, bearing and other parts, easy to maintain and replace the knife, the unique sealing structure effectively prevents the contact of broken objects and grease, and handles liquid materials It can also protect bearings and gears.

4. The cutter shaft is processed and refined with high-strength and heavy-duty special steel, which can more reasonably cooperate with the cutter to provide powerful power for cutting.

1.Equipment structure: The motor drives the reducer through the bevel gear to drive the rotor shear plate to rotate at low speed. This equipment is mainly composed of feed silo, broken double stick, power distribution control system, discharge conveyor and power drive;

2.Feeding silo: After entering the material, it is divided evenly in the space between the rotor shear plate and the stator shear plate. The material is shredded by the squeezing and shearing of the rotor shear plate and the stator shear plate. Discharge from the bottom of the shredder. Place the metal to be broken to prevent the metal from splashing out and causing failure when shredding;

3.Double crushing rollers: The double rollers are equipped with wear-resistant knives. After all the cutter heads are assembled, they form a spiral knife. After rotating, each cutter head is guaranteed to be evenly stressed. The double rollers are fastened to ensure that there is no large gap between the two roller cutter heads. , The metal is shredded by the scratching of the knife and the squeezing between the double sticks;

4.Power system: the feed is driven by a reducer;

5.Discharge conveyor: independent power system, the whole is bolted to the crusher, which can be drawn out as a whole, and the maintenance and replacement parts are flexible and convenient;

This type of equipment can directly fix, hook and squeeze the materials fed into the feed bin by the crushing double rollers to complete the shredding process.
