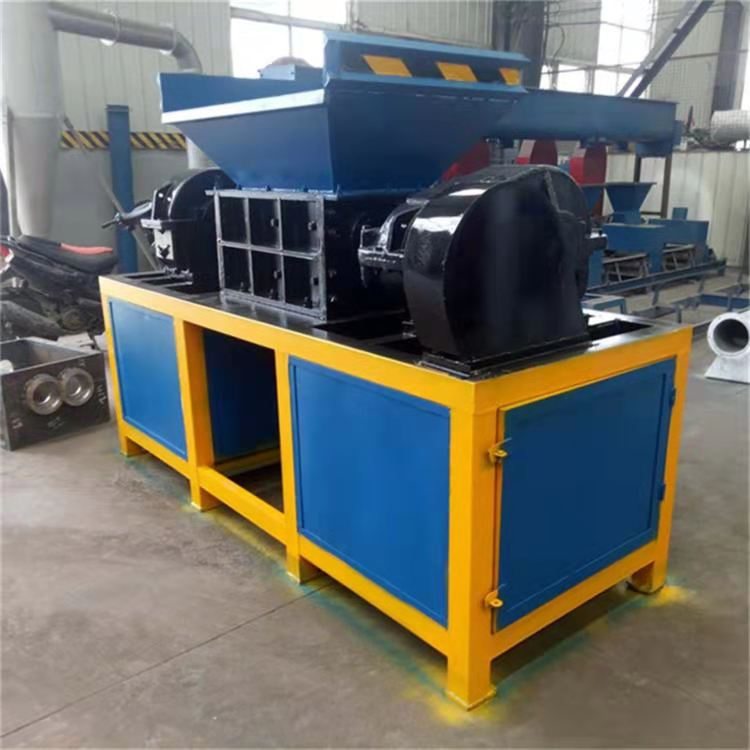

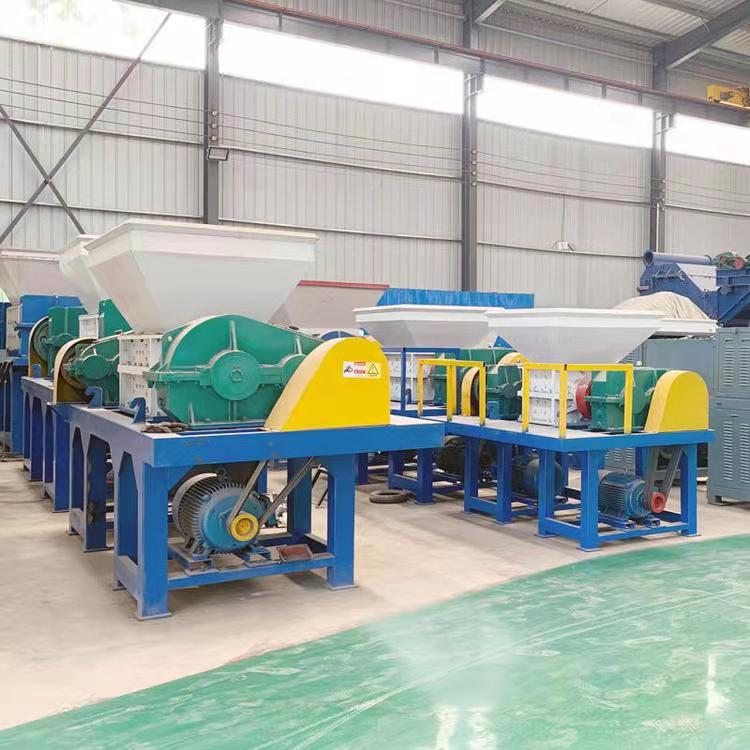

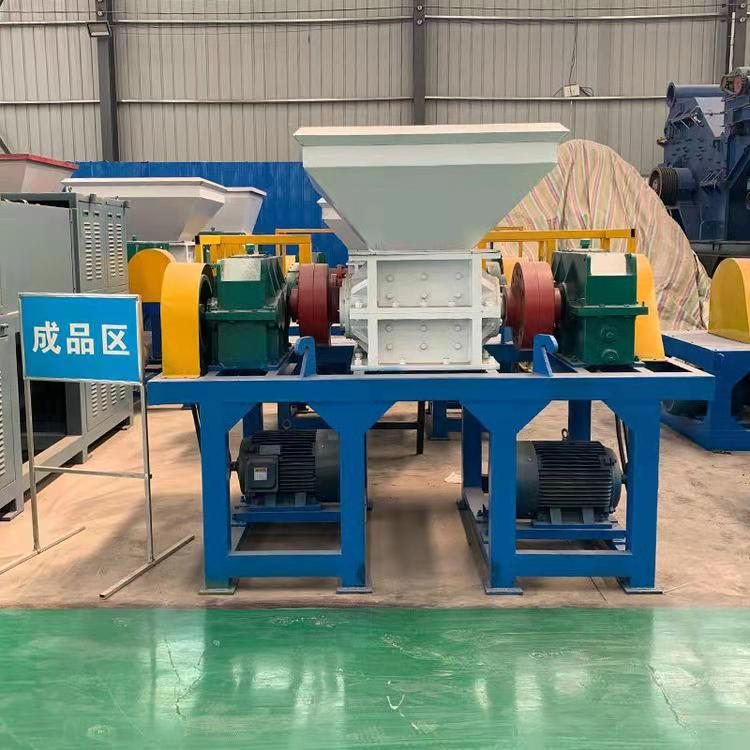

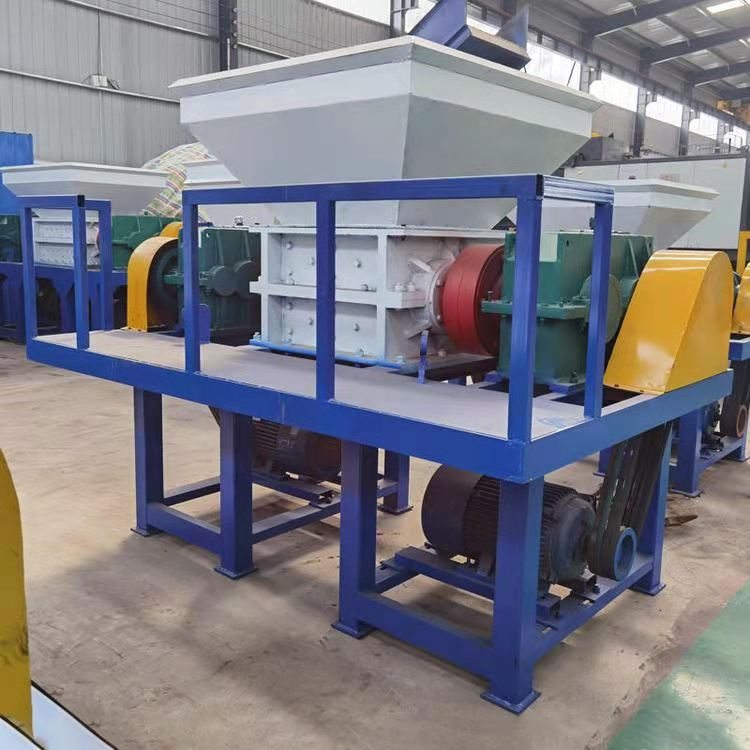

Tire shredder

Ultra-low speed, super torque, 5~13 revolutions per minute;

Low noise and low dust;

Optional electric or hydraulic motor;

According to the different properties of materials, customers are free to choose integral shredding blades or assembled detachable blades;

Optional hydraulic forced feeding device to shred materials more quickly;

The double locking structure at both ends of the shaft head ensures the installation position of the blade and prevents axial displacement;

Using microcomputer (PLC) automatic control, with start, stop, reverse and overload automatic reverse control functions;

80 to 100 hours before leaving the factory to test the material to ensure the reliability of the equipment.

A complete tire shredder production line processes waste tires and waste miscellaneous rubber at room temperature. The equipment is equipped with a wind-water cooling system, a micro-dust removal device, and an atomizing spray system. In addition, dust removal and fiber removal equipment can be added according to the user's raw materials.

Safety rules:

1. After starting, when the standby device reaches normal operation, it is allowed to feed crops evenly and continuously.

2. Pay attention to the motor speed, sound and bearing temperature during operation.

3. When feeding, the operator should stand on the side of the feeding port, the sleeves of the clothes should be fastened, and a mask and work cap should be worn.

4. When feeding, pay attention to whether there are stones, sickles, tool screws and other hard objects in the input to avoid damage to the machine and cause personal failure.

5. When the machine is rotating, belts, oiling, cleaning and troubleshooting are not allowed.

6. If the following problems are found, the engine should be turned off, and the machine should be shut down to deal with it. ①The motor is smoking, ②the blockage, ③the crushing quality is not good, ④the bearing is overheated and exceeds 60 degrees.
