Garbage shredder Introduction

The common structures of household garbage shredder mainly include single shaft, double shaft and four shaft. This domestic garbage crusher is driven by a planetary gear reducer, and the blades are made of high-strength alloy steel. It has the characteristics of strong wear resistance and high strength. Differential operation between shafts, such as tearing, squeezing, biting, etc. Features. Designed for various household garbage materials, suitable for crushing various household garbage, such as: waste clothes, waste shoes, waste quilts, waste daily necessities, packaging bags, waste wood, waste plastics, food waste, etc. Provide design according to requirements. It has the advantages of uniform discharge, controllable size, large output, and low noise.

Scope of application:

Wood: wood scraps, wooden pallets, solid wood, branches

Barrel products: plastic barrels, metal barrels, paint barrels, IBC barrels, trash cans

Garbage: domestic garbage, food waste, industrial waste, garden waste

Plastic products: all kinds of plastic films, plastic bags, woven bags, plastic bottles, plastic frames, plastic blocks, plastic cans,

Metal products: aluminum profiles, oil filters, car shells, cans, metal cans

Paper: Newspaper, cardboard, corrugated paper, copy paper

Electronic appliances: refrigerators, circuit boards, laptop casings, TV casings, CD discs

Glass products: glass wool, glass cups, glass bottles

Rubber: tires, various rubber products

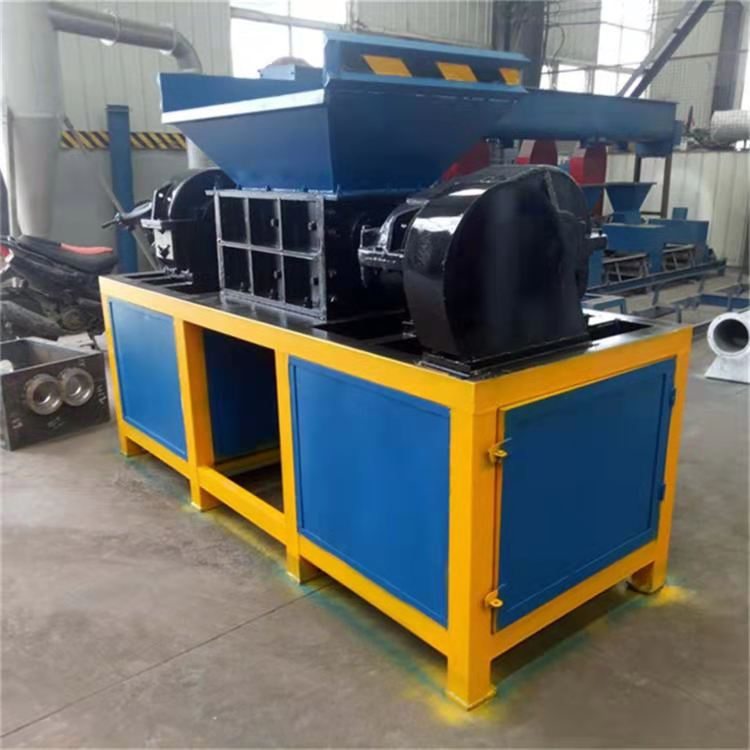

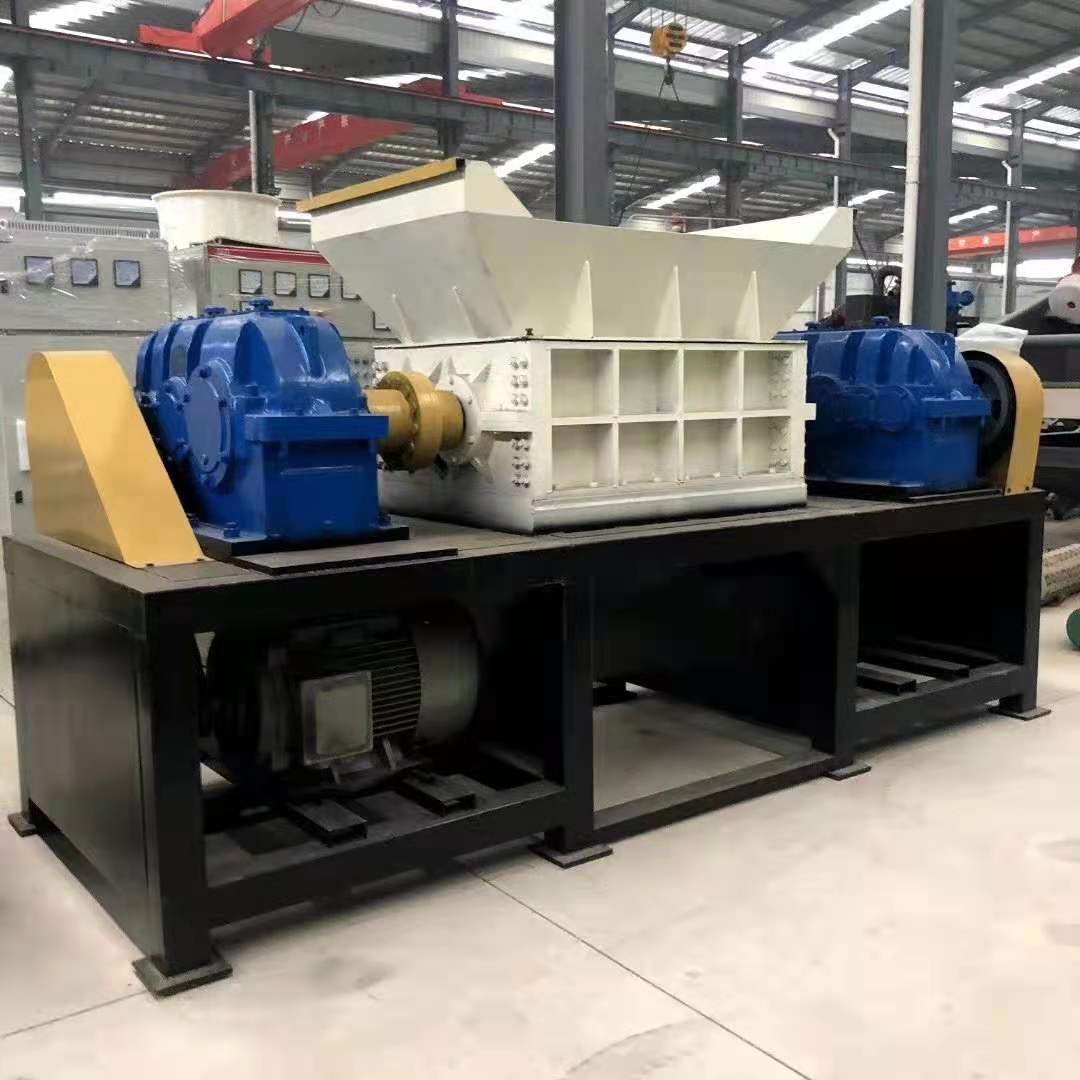

Album

Advantages

1: Heavy movable knife, high crushing power, all tools are made of alloy steel casting, strong and long service life.

2: The frame plate is thick, can resist high torque, and is very strong.

3: It adopts microcomputer (PC) automatic control, with start, stop, reverse and overload automatic reverse control functions.

4: The equipment has the characteristics of low speed, high torque, low noise, and dust can reach environmental protection standards.

5: Easy to adjust, low maintenance cost, economical and durable.

6: The thickness of the cutter and the number of claws can be changed according to different materials.

Working Principle

The garbage shredder adopts two-axis independent drive, so that the material will be compressed accordingly during production to achieve the automatic feeding function. The excellent cutter shaft structure and the four-corner rotary cutter are used in the production process of low speed and high torque. There will be no winding shafts or jamming of the equipment, thereby improving production efficiency. The equipment is suitable for crushing various materials with high toughness and viscosity.

There are many advantages in production, environmental protection, recycling and other aspects.

Parameter

model	2600	1900	1500	1200	1000	600
Spindle power (kw)	4-160*2	4-90*2	4-45*2	4-37*2	4-30*2	4-15*2
Spindle speed (r/min)	16-18	14-16	14-16	18-20	18-20	18-20
Capacity (t/h)	25-60	10-25	8-18	6-15	5-10	2-5
Conveyor power (kw)	4-3kw	4-3kw	4-3kw	none	none	none
Number of cutter heads (pieces)	40	40	30	28	30	26
Number of cutter heads (pieces)	Different materials, different number of teeth and blades, can be customized
Cutter diameter (mm)	Φ720	Φ560	Φ530	Φ372	Φ360	Φ260
Broken size (cm)	3-10	3-10	3-10	3-10	3-10	3-10
Silo size (mm)	2425*1400	2300*200	2000*2000	1400*1000	1200*1000	820*900
Dimensions (mm)	820040004300	800025002400	400017002400	320020001900	300020001900	260020001900
Weight(t)	36	15	12	6	5	2.5
