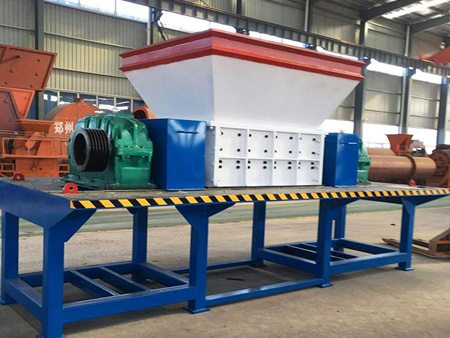

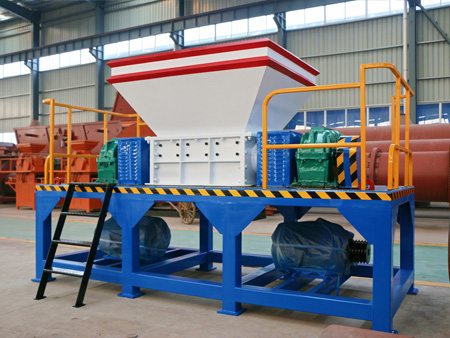

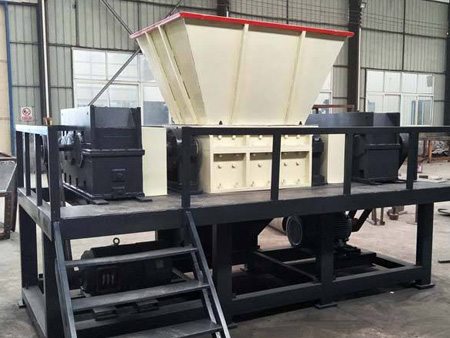

Steel shavings iron shredder

1. Power distribution box: The transmission gear has been forged and high-frequency quenched, which has a higher service life.

2. Fixed knife: The fixed knife plays a role of guiding the material and can prevent the material from being broken back and clean the blade.

3. Fixed knife fixing frame: Fix the fixed knife function, optimize the tool replacement function, and make the tool maintenance and replacement more reasonable.

4. Sealing: The unique sealing structure can protect the machine even when handling liquid materials.

5. Bearing seat: The bearing seat adopts a split type, which can quickly remove the cutter shaft, blade, sealing system, bearing, and other components, and is easy to maintain and replace the cutter.

6. Movable knife: adopt D2 after heat treatment and tempering as a whole. The hardness and toughness of the tool material are the same inside and outside, with high strength and service life. The tool can be used repeatedly, and the blunt is grinded in proportion on the basis of the original thickness. Bianling's tools can still be used.

7. Knife shaft: Use high-strength material to mill a hexagonal shape after quenching and tempering, high-frequency processing, and it is not afraid of damage to the force of the tool.

8. The feeding hopper and frame can be designed reasonably according to customer requirements.

Steel shavings and iron shredder equipment is equipped with a hydraulic device on the main body of the machine, which can be raised at any time during maintenance and repair. This hydraulic device is convenient, fast, and time-saving and labor-saving during maintenance. The steel scrap iron shredder is equipped with a vibration device at the bottom of the main machine. This device can make the shredded steel scraps and iron scraps quickly bounce down and fall on the discharge conveyor. They are separated by the magnetic separator. The clean iron material and other impurities are sent out through the distribution conveyor. When the steel scraps and iron scraps are shredded into and out of the material, the dust removal device is turned on, which can effectively remove the dust and light impurities generated in the crushing process quickly, and presents a cotton-like shape, which can be cleaned away in time by a trolley or a loader. The whole steel shavings iron shredder production line can be configured with different types of equipment according to the user's investment size, site size, and output level.
